9909-232

SCANLAN^®

Chitwood DeBakey Clamp

9909-232

Developed in cooperation with W. Randolph Chitwood Jr. , MD

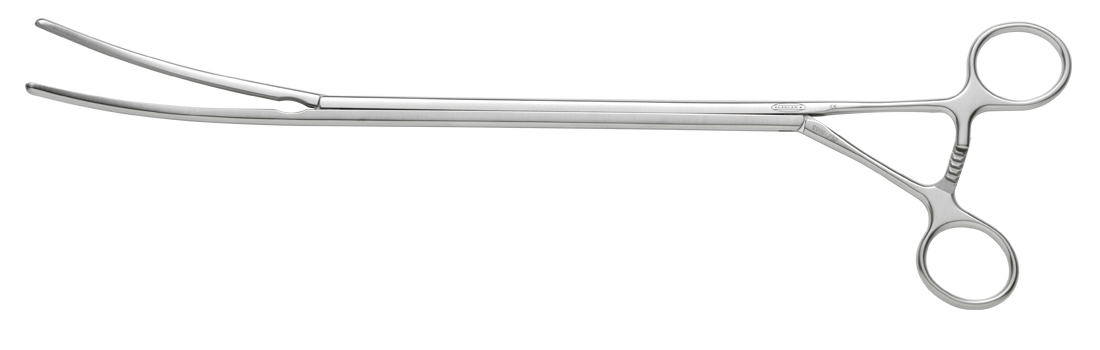

SCANLAN^® Chitwood DeBakey Clamp

10 mm shaft, ring handle, 2×3 wide curved left DeBakey jaws, 10 cm jaw length, with ratchet, working length: 10″ (25.4 cm), total length: 14-1/4″ (36.0 cm)

SKU: 9909-232 Categories: Clamps, VATS/MIS Instruments

VATS Instrument Features

The rounded blunt ends of the jaws are useful for blunt dissection to mobilize the artery, vein and bronchus.
May be used as a guide prior to stapling by passing behind the mobilized artery, vein or bronchus to replicate the direction of the linear stapler.
May be used to clamp the lung tissue parallel to the stapler when stapling the lung tissue; this creates even tissue tension which results in a smooth, even staple line.

MIS Instrument Features

May be used as an aortic cross-clamp for minimally invasive cardiac procedures such as valve replacement or repair.
This clamp may be positioned on the aorta via a sub-axillary incision.
The selection of jaw sizes accommodates a wide range of patient sizes and anatomy.
The 1 x 2 DeBakey jaws provide an atraumatic and secure grasp of the aorta. The wider 2×3 DeBakey jaws of the 9909-232 clamp provide an even more gentle yet secure grasp of the aorta.

Please Note…

Each Scanlan instrument is individually handcrafted to provide the surgeon with the highest quality, longest-lasting, precision instrument possible. Reflecting this unique process, all stated dimensions are approximate.

FEATURES.

VATS/MIS Choice	MIS, VATS
VATS/MIS Category	Clamps
VATS/MIS Instrument Type	Chitwood DeBakey
VATS/MIS Handle	Ring Handle
VATS/MIS Ratchet	Yes
VATS/MIS Jaws	2×3 DeBakey
VATS/MIS Jaw Dimensions	100 mm
VATS/MIS Jaw Direction	Curved Left
VATS/MIS Working Length	25.4 cm (10")
VATS/MIS Total Length	36.0 cm (14-1/4")
